TL MACHINE

Tamper evident applying machines

“We have two types:
1) for large formats and / or low speeds
2) for high speeds



1) The TL for large containers and low speeds has the following phases:
• Feeding and transport of the containers from the line conveyor
• Separation and insertion of the seal on the containers in transit in the machine
• Shrinking of the seals on the neck of the containers. The containers coming from the line are correctly distanced from each other for the inserting of the sleeve.

Differently to most of the shrink sleeve machines already on the market, our machine features an alternative solution to the traditional cutting of the sleeve by means of rotating blades.
The sleeve tubular, in its original flat form, is fed into a couple of parallel shafts with toothed blades that carry out the pre-perforation of the sleeve (transversal to the advancing direction) in the middle of the transparent zone typically left unprinted between one sleeve and the other or with registered print. The pre-perforated tubular is then opened by a very simple and light shaping mandrel, suspended on two pairs of rubber nip rollers actioned by electronic servomotors.The mandrel allows the use of sleeves with a minimum abundance compared to the perimeter of the cap, allowing savings on the raw material and on the energy consumption necessary for the shrinking of the seal.

The first couple of rollers provides for the sleeve tube feeding to the second couple of rollers, which, by means of a speed difference, separate the sleeve along the pre-perforation and fit it onto the contianers passing under the applying head.
2) The TL for high speeds with continuous movement works through the following phases:

a. Feeding and continuous motion transport of the bottles on a conveyor belt;
b. Feeding, cutting of seals and their application on a carousel of pins that hook the sleeve from the inside, these pins expand mechanically in order to keep the seal open and in position;
c. Transfer to the neck of the bottle by means of a pusher which progressively pushes it downwards during its run, in perfect synchronization with the bottles in continuous passage.
d.The bottle is then sent to the shrink tunnel where the seals are shrunk on the neck of the bottle.
(See)

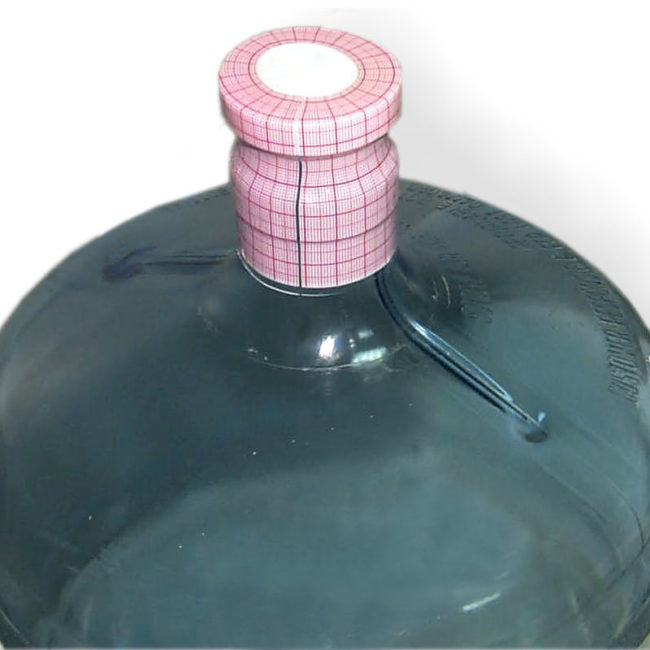

  • Possibility of applying both small and large seals (eg water bottles)
  • With the carousel system it is possible to reach high speeds (up to 1000 cpm) thanks to greater precision in the application; in this case the application system allows the use of very thin materials (up to 20 mµ) with considerable savings, even of energy required for the shrinking
  • Differently to most of the shrink sleeve Labellers on the market, on all our machines the separation of the sleeve one from the other is obtained by means of the controlled tearing of a perforation: The sleeve tubular, in its original flat form, is fed through a pre-cutting unit, formed by a couple of parallel shafts with toothed blades, driven by a servomotor. The blades carry out the perforation on the flat sleeve even with print registration.
  • In a basic configuration for lower speeds, the machine has a function that allows it to be positioned directly on existing conveyor belts. This also thanks to its special structure that can be adjusted in height. This configuration allows the machine to be installed very easily, without having to perform any work or modification of the existing production line

Shrinking tunnel with hot-air jets for tamper evident seals.

3.000 ÷ 60.000 cph

Advantages
  • Possibility of applying both small and large seals (eg water bottles)
  • With the carousel system it is possible to reach high speeds (up to 1000 cpm) thanks to greater precision in the application; in this case the application system allows the use of very thin materials (up to 20 mµ) with considerable savings, even of energy required for the shrinking
  • Differently to most of the shrink sleeve Labellers on the market, on all our machines the separation of the sleeve one from the other is obtained by means of the controlled tearing of a perforation: The sleeve tubular, in its original flat form, is fed through a pre-cutting unit, formed by a couple of parallel shafts with toothed blades, driven by a servomotor. The blades carry out the perforation on the flat sleeve even with print registration.
  • In a basic configuration for lower speeds, the machine has a function that allows it to be positioned directly on existing conveyor belts. This also thanks to its special structure that can be adjusted in height. This configuration allows the machine to be installed very easily, without having to perform any work or modification of the existing production line
Optional

Shrinking tunnel with hot-air jets for tamper evident seals.

Speed

3.000 ÷ 60.000 cph

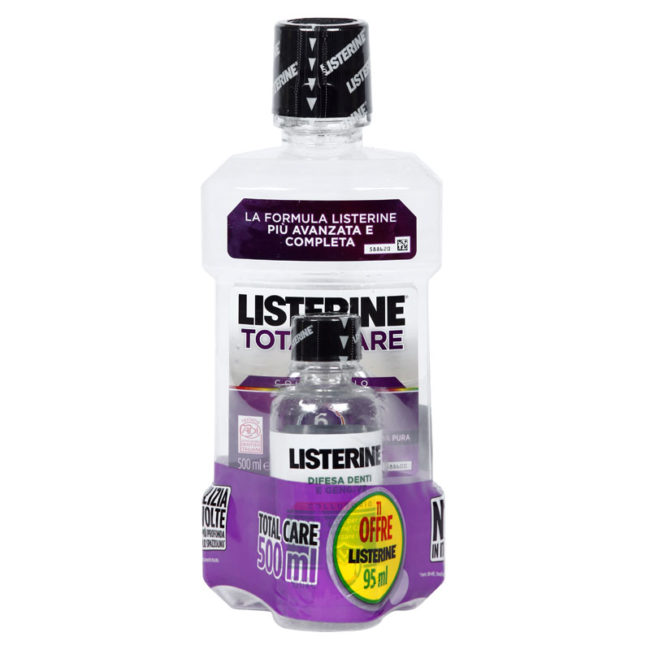

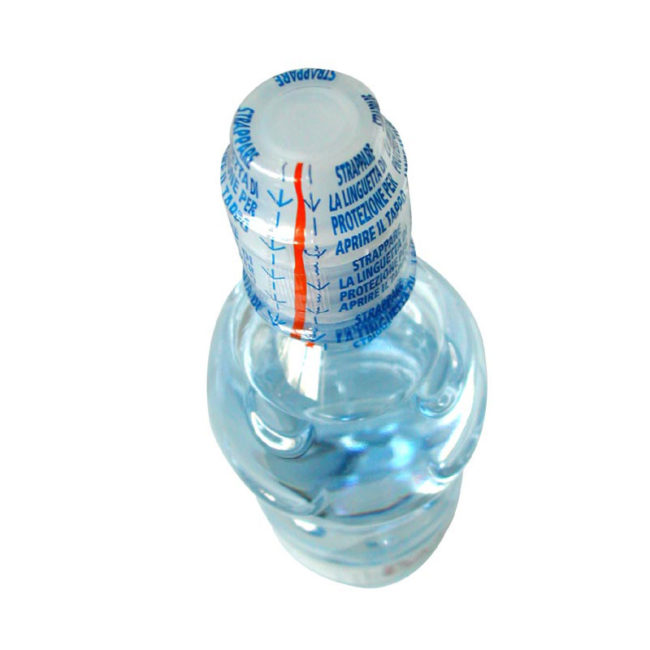

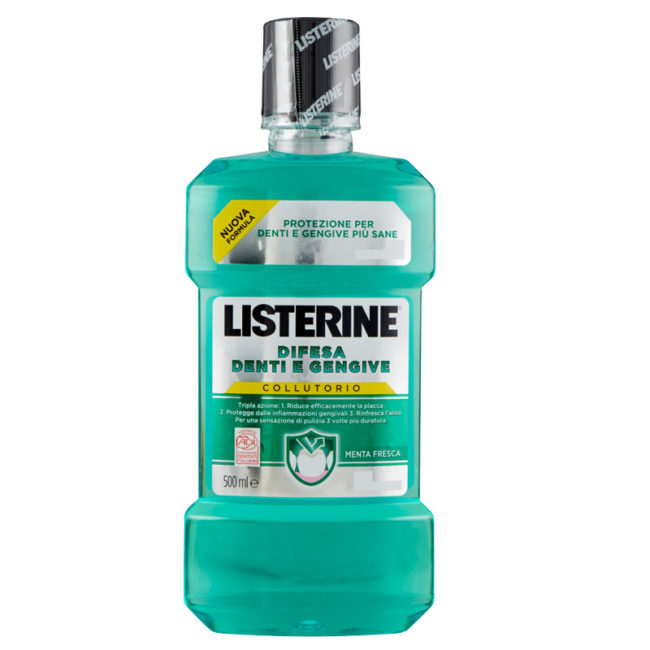

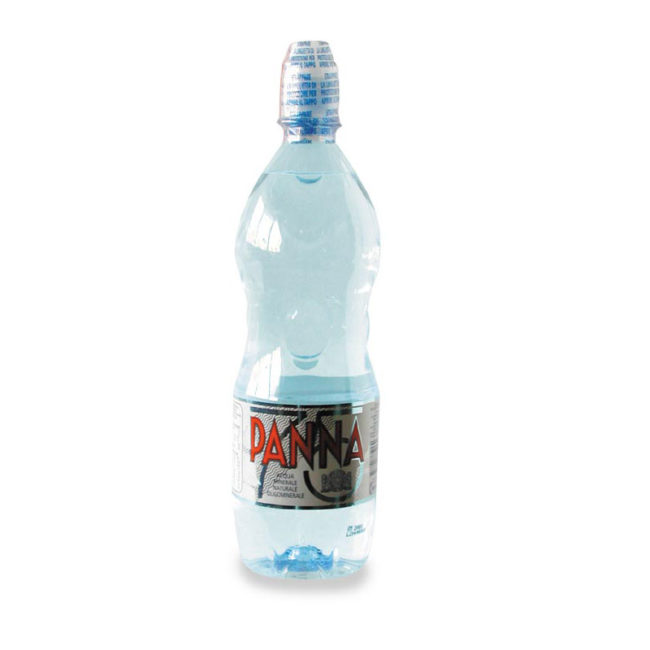

Application area
