Pneumatic adhesive handle applying machines "H" series

Comag Handle Applicators apply self-adhesive handles on shrink-wrapped multipacks at a maximum speed of 70 cpm, but they can also double the production when they work on double lanes.
Our Handle Applying Machines have a single, extremely robust stainless steel structure, which incorporates the application head and the conveyor belts in the area where the handles are applied. The safety guards and the electrical panel are integrated into the machine structure.

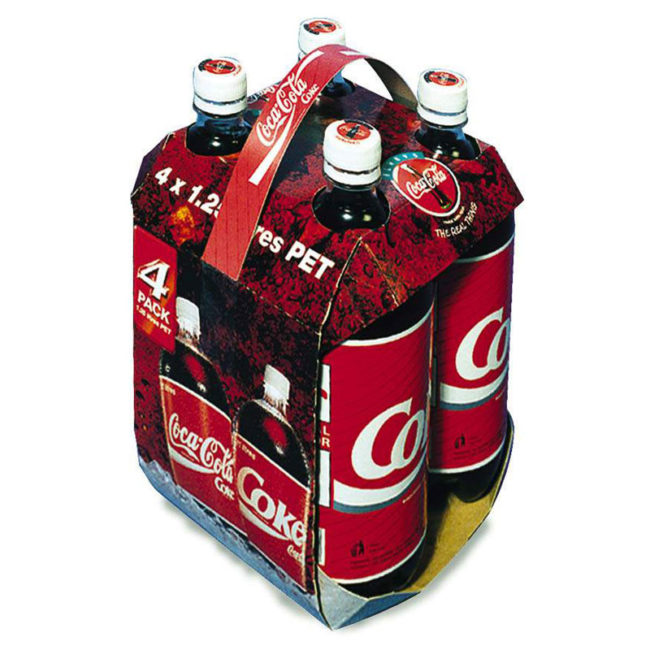

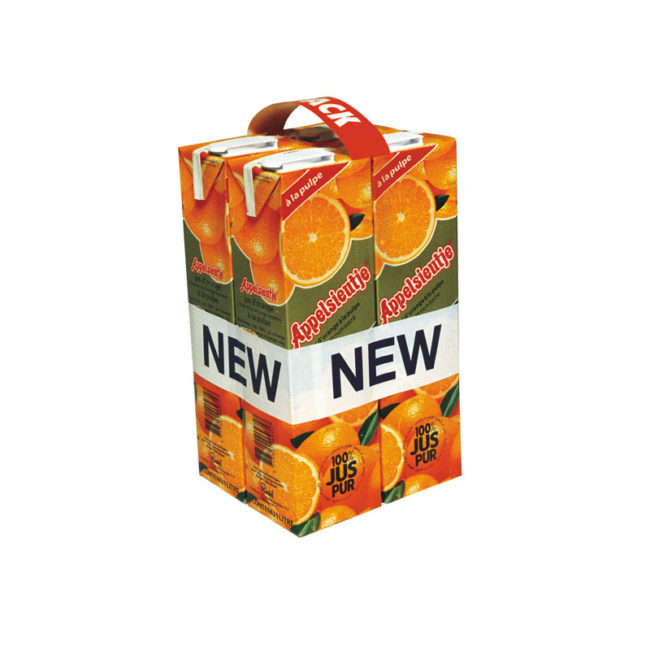

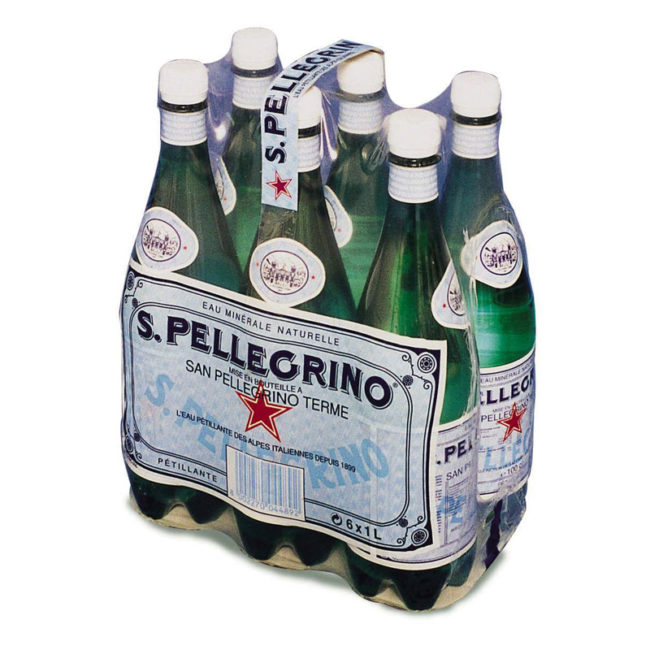

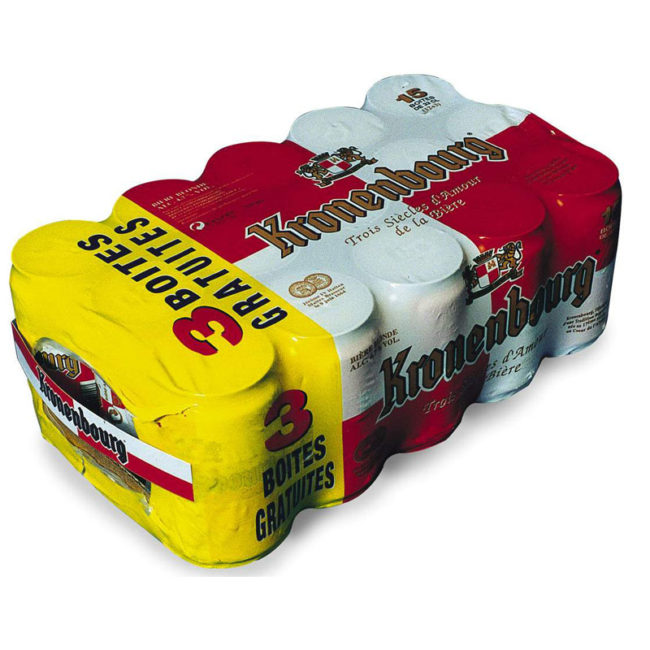

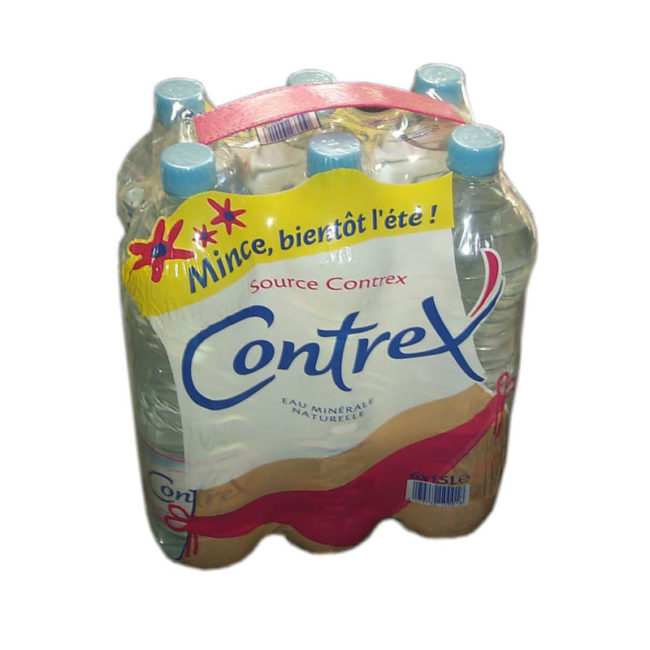

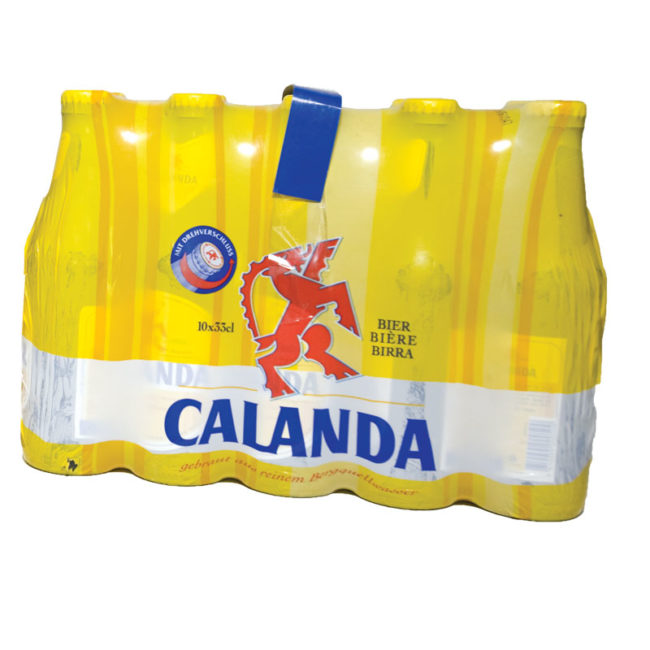

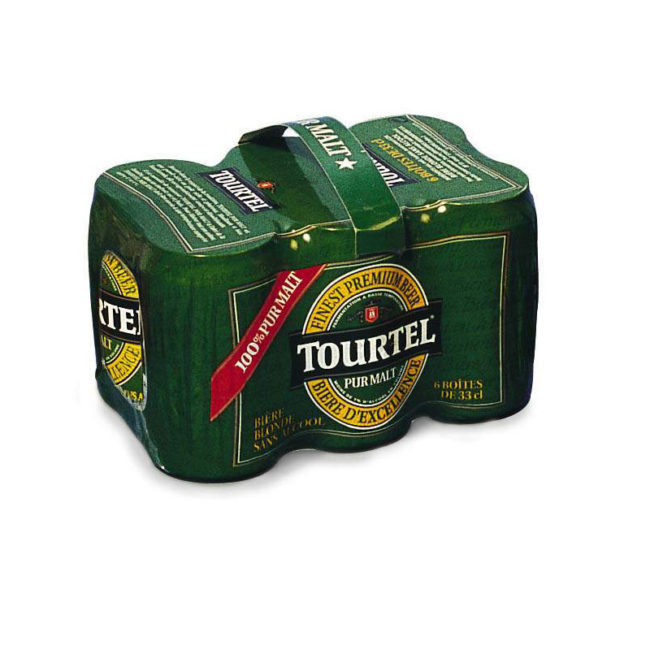

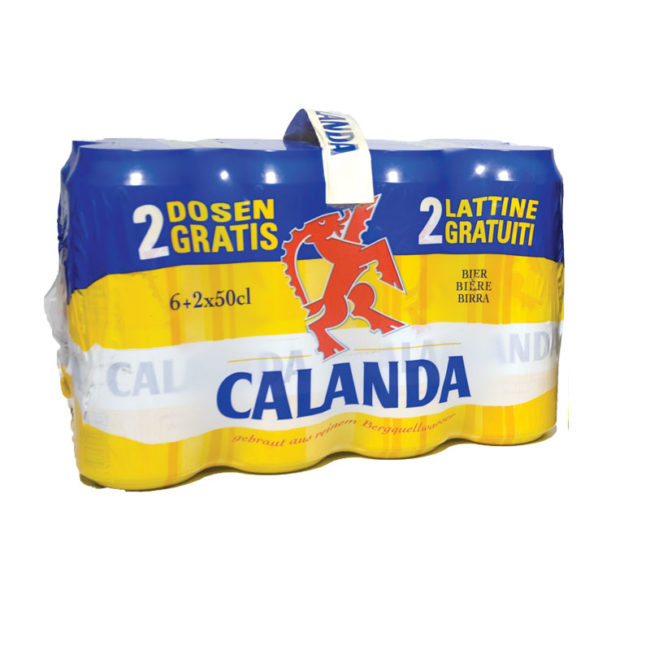

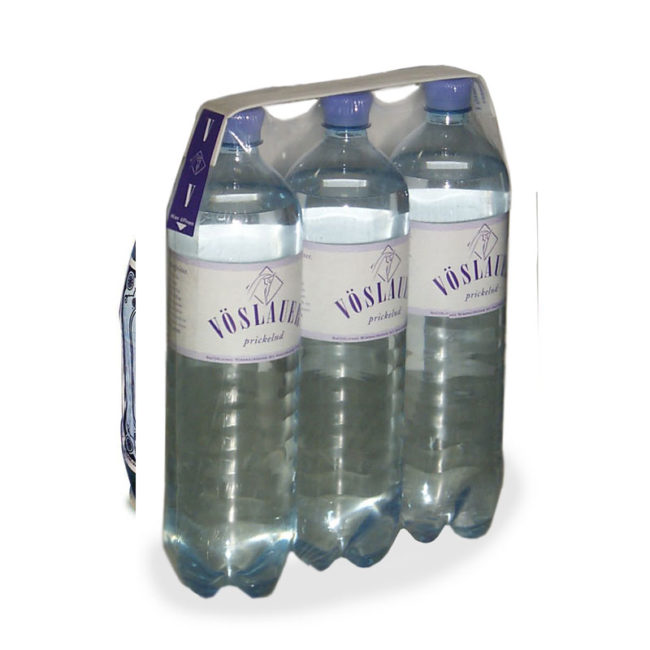

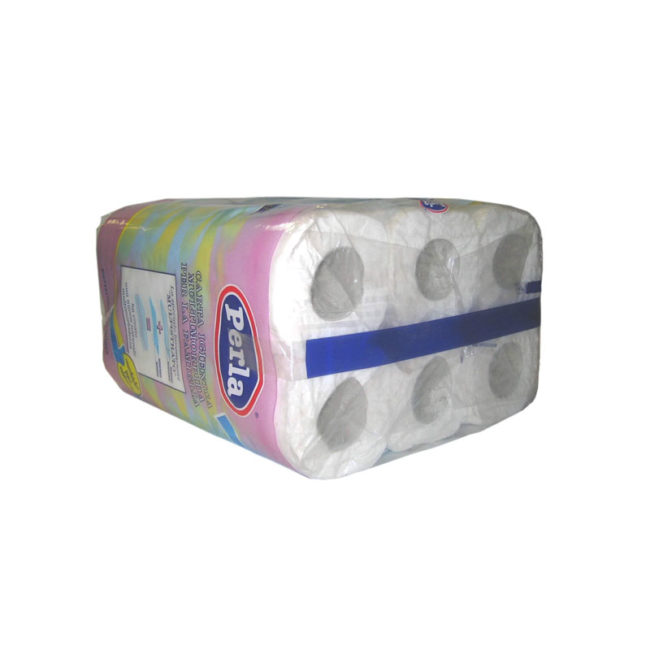

The Handle Applying Machines can apply the handles on a wide range of products: paper rolls, bottles, briks, cans, boxes, shrink-wrapped packs etc.
Electro pneumatic Handle Applying Machine is available in three models:

Mod. H40 Speed: 40 cpm Number of lanes: 1 – 2
Mod. H55 Speed: 55 cpm Number of lanes: 1 – 2
Mod. H70 Speed: 70 cpm Number of lanes: 1 – 2

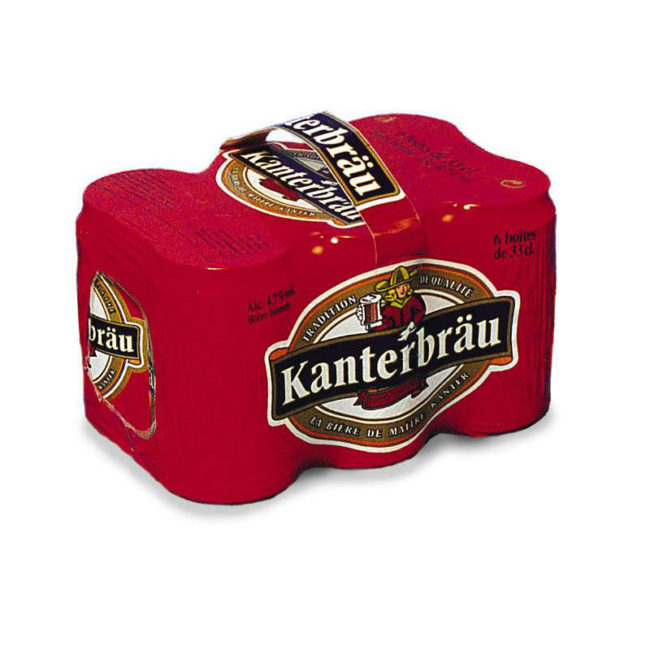

“H” series for the application of carry handles on shrink-wrapped multipacks of bottles, briks and cans. The models in this series are the simplest ones in production. The movements of the mechanical parts which apply the handle on the packs are driven by pneumatic cylinders. This simple technology, together with high quality standard in the parts manufacturing and to an advanced PLC control, gives excellent results for operating speeds up to 70 cycles per minute. (See)

The applicator heads can be raised or lowered with respect to the machine level, depending on the different heights of the formats to be run. This operation can normally be carried out by acting on the 4 adjustable attachment points of the applicator heads. The option allows, as an alternative to the standard configuration, rapid adjustment by means of a crank with a revolution counter

The applicator heads can be raised or lowered with respect to the machine level, depending on the different heights of the formats to be run. This operation can normally be carried out by acting on the 4 adjustable attachment points of the applicator heads. The option allows, as an alternative to the standard configuration, rapid adjustment by means of a crank with a revolution counter.

MOTORISED DEVICE FOR HANDLE ARC FORMATION – To apply the handle on cardboard and / or shrink-wrapped bottle packs with front side leading composed of an even number of bottles, (eg 2-4-6) it is necessary to position the handle between the necks of the bottles, and not in correspondence to the caps. This requires a device that develops an easy-to-grip handle arc for the end customer.

EXTERNAL HANDLE FEEDER UNIT – with the capacity of feeding up to 5.000 handles complete of a double-reel holder for the adhesive tape. The external unit can also be installed at a distance from the Handle Machine to move the loading operations of the consumables with respect to the in-line positioning of the machine.

AUTOMATIC SPLICING OF THE ADHESIVE TAPE REELS: only for machines equipped with external handle feeder units

Serie H: 2.400 ÷ 4.200 cph su singola linea – 4.800 ÷ 8.400 cph su doppia linea

Advantages

The applicator heads can be raised or lowered with respect to the machine level, depending on the different heights of the formats to be run. This operation can normally be carried out by acting on the 4 adjustable attachment points of the applicator heads. The option allows, as an alternative to the standard configuration, rapid adjustment by means of a crank with a revolution counter

Optional

The applicator heads can be raised or lowered with respect to the machine level, depending on the different heights of the formats to be run. This operation can normally be carried out by acting on the 4 adjustable attachment points of the applicator heads. The option allows, as an alternative to the standard configuration, rapid adjustment by means of a crank with a revolution counter.

MOTORISED DEVICE FOR HANDLE ARC FORMATION – To apply the handle on cardboard and / or shrink-wrapped bottle packs with front side leading composed of an even number of bottles, (eg 2-4-6) it is necessary to position the handle between the necks of the bottles, and not in correspondence to the caps. This requires a device that develops an easy-to-grip handle arc for the end customer.

EXTERNAL HANDLE FEEDER UNIT – with the capacity of feeding up to 5.000 handles complete of a double-reel holder for the adhesive tape. The external unit can also be installed at a distance from the Handle Machine to move the loading operations of the consumables with respect to the in-line positioning of the machine.

AUTOMATIC SPLICING OF THE ADHESIVE TAPE REELS: only for machines equipped with external handle feeder units

Speed

Serie H: 2.400 ÷ 4.200 cph su singola linea – 4.800 ÷ 8.400 cph su doppia linea
